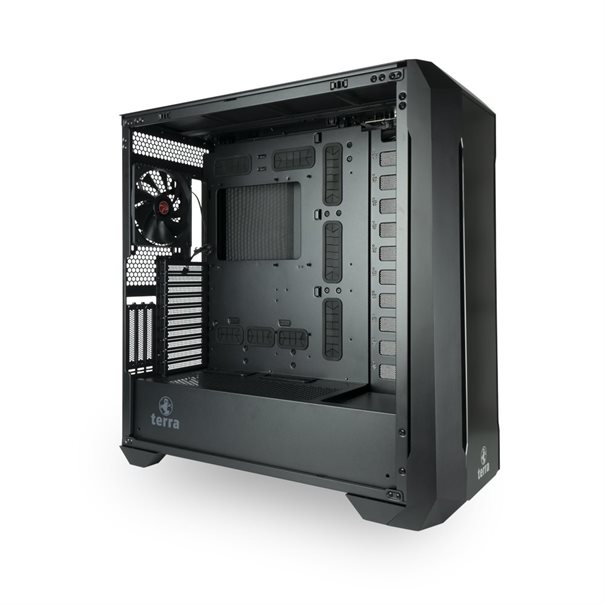

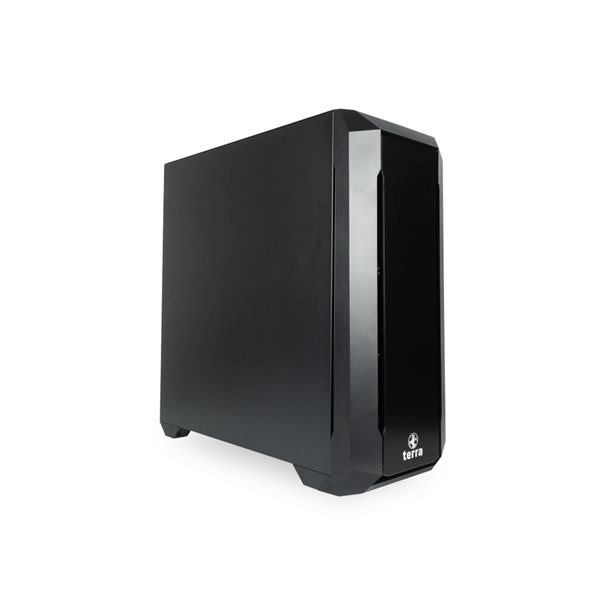

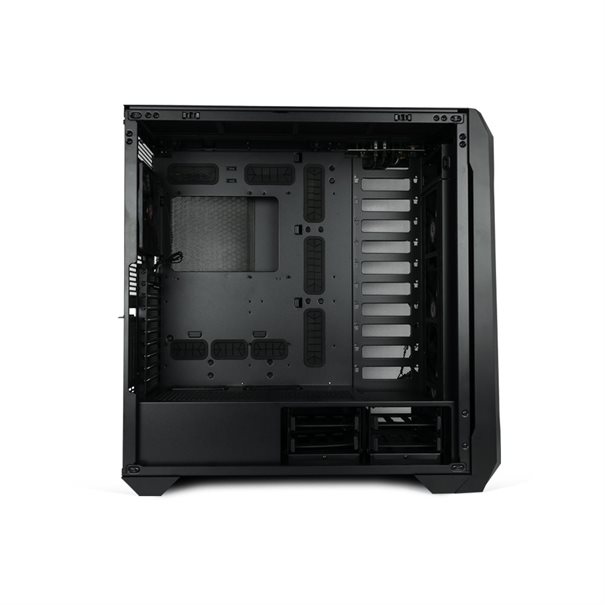

TERRA WORKSTATION 7570 | Intel Xeon W3-2425 | 16GB RAM | 500GB SSD | NVIDIA RTX A2000 Professional Graphics | Windows 11 Pro

Order today, delivery: 04 Jun - 06 Jun

  • Processor model: Intel Xeon W3-2425
  • Internal memory: 16 GB
  • Operating system: Windows 11 Pro
  • Total storage capacity: 500 GB
  • Graphics card: NVIDIA RTX A2000 Professional Graphics
  • Graphics adapter ports: 4x DisplayPort

See More >>

SKU: 1000906 Categories: ,

5,046.00 4,102.44

TERRA WORKSTATION 7570 | Intel Xeon W3-2425 | 16GB RAM | 500GB SSD | NVIDIA RTX A2000 Professional Graphics | Windows 11 Pro

5,046.00 4,102.44

For Expert Advice contact our sales team

Call Sales

TERRA high-end workstation

PNY’s latest Intel Workstation CPU graphics accelerate your application with the performance and reliability you need to maximize your creativity.

For optimal performance of SpeedGrade and the GPU-accelerated functions of Premiere Pro and After Effects, the following graphics cards are recommended: NVIDIA RTX A4000, RTX A5000 or RTX A6000.

General
Processor model Intel Xeon W3-2425
Operating system Windows 11 Pro for Workstations
Software
Pre-installed software 1 month trial version for new Microsoft® 365 user
Processor
Processor family Xeon
Processor cores Hexa-Core (6 Core)
Processor socket FCLGA4677 Socket
Number of processors 1
Memory
Internal memory 16 GB
Maximum internal memory 2048 GB
Internal memory type REG DDR5 ECC
Memory slots 4
Memory form factor DIMM 240-PIN
Storage
Total storage capacity 500 GB
HDD interface 4x SATA 6Gb/s ports
1x M.2 slot (PCIe 4.0 x4/ available with 11th Gen CPU only)
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
RAID levels RAID 0
RAID 1
RAID 5
RAID 10 RAID 1 RAID 5 RAID 10
SSD interface PCIe 4.0
SSD capacity 500 GB
HDD capacity 1 x 500 GB – SSD
Storage media SSD M.2
Performance
Series Workstation
Audio output channels 8-channel
Motherboard chipset Intel W790
Design
Chassis type Tower
Certification ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Keyboard form factor Optional
Keyboard
Keyboard language International
Device interface USB
Technical details
Localization International
Field of use Adobe Illustrator
Autodesk 3ds Max
Expansion slots
Expansion slots 1x PCIe 5.0/4.0/3.0 x16, 1x PCIe 4.0/3.0 x16 (supports x4 mode)
2x PCIe 3.0 x16 (supports x4 mode), 1x PCIe 3.0 x1
Weight & dimensions
Height 59.7 cm
Width 25.4 cm
Depth 59.8 cm
Weight 21.5 kg
Other features
Interface 1x USB 3.2 Gen USB Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen1, 2x USB 2.0, 1x DP 1.4, 1x HDMI 2.1, 1x Realtek 2.5Gb Ethernet RJ45, 5x Audio jacks, 1x Optical S/PDIF out port
Compatible operating systems Windows 10 (64-Bit)
Windows 11 (64-Bit)
Unsupported OS by WAG: Linux (64-Bit)
Motherboard manufacturer Asus Pro WS W790-ACE
Cooling type Active
Compliance industry standards CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Special features 2x USB 3.1 Gen1 Typ A + Audio in Front
Mouse
Mouse included TERRA wheel mouse optical
Graphics
On-board graphics adapter memory 2 GB
Graphics card NVIDIA RTX A2000 Professional Graphics (by PNY)
Graphics adapter ports 4x DisplayPort
Power
Power source ATX power supply 80 Plus Gold, suitable for 24-7 continuous operation
Energy efficiency (Workload 20 %/ 50 % / 100 %): 87 %/ 90 % / 87 %
Maximum input power 650 Watt
AC adapter input voltage AC 100/240 V ( 50/60 Hz )
Operational conditions
Operating temperature (T-T) 10 °C – 32 °C
Maximum operating temperature range (T-T) 32 °C
Recommended humidity operating range 10 – 75% (non-condensing)
Network
Ethernet LAN Network adaptor integrated
LAN controller Realtek 2.5Gb Ethernet
Optical drive
Optical drive type DVD±RW
Input device
Movement detection technology Optical
Device interface USB
